RTD Probe Assembly
The 230056 back-of-module RTD probe assembly is optimized for easy installation on PV modules and is compliant with IEC 61724-1 for bifacial PV module rear-side application.
It features a Class A (IEC 60751) Pt1000 RTD in a flat-bottom aluminum disc probe with a simple VHB peel-and-stick adhesive layer that makes installation easy but is reliable long-term in outdoor use.
The 230056 assembly has an M8 3-pin connector compatible with both the RDE300i PV module measurement device, the RT01 RS485 temperature transmitter, and the RDE300 series.
Part Numbers
- 230056: RTD assembly
- 810297: Order number including 230056 RTD and installation kit
Datasheet
Use the link at the bottom of this page to download the 230056 RTD datasheet, document 880101.
Installation Instructions
For installation instructions, see 810297 RTD Kit and 230056 RTD Probe Installation.

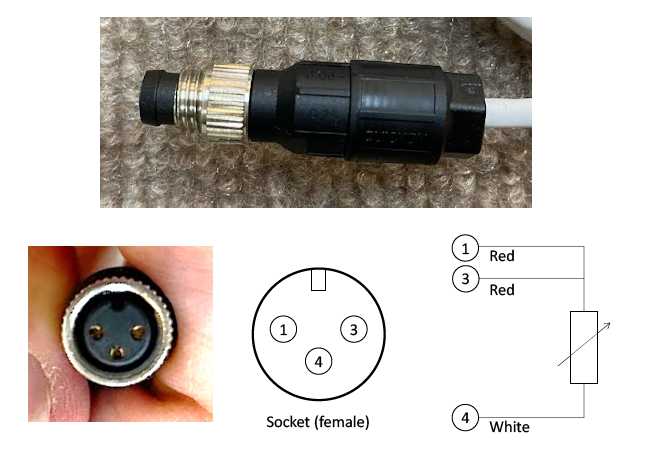

Connector Pinout and Wiring Diagram
The diagram below shows the connector pinout and wire colors. The two red wires are connected to the same side of the RTD.
